Our different types of aortic aneurysms are based on patient data and allow learning the basics of catheter techniques including iliac arteries and outgoing vascular branches.
Perfusible with external pump (Flowbox Neo - not included)
Scale: 1:1
Material: either silicone or acrylic, transparent or colored
Infrarenal aortic aneurysm #001
Linkt to 3D model| Area | Dimensions |
|---|---|
| Aorta D_i | 25mm |
| L_Neck | 35mm |
| Aneurysm D_i | 55mm |
| C iliac D_i | 12mm |
Infrarenal aortic aneurysm #001
Left common iliac aneurysm #002
| Area | Dimensions |
|---|---|
| Aorta D_i | 22mm |
| L_Neck | - |
| Aneurysm D_i | 32mm |
| C iliac D_i | 18mm |
Left common iliac aneurysm #002

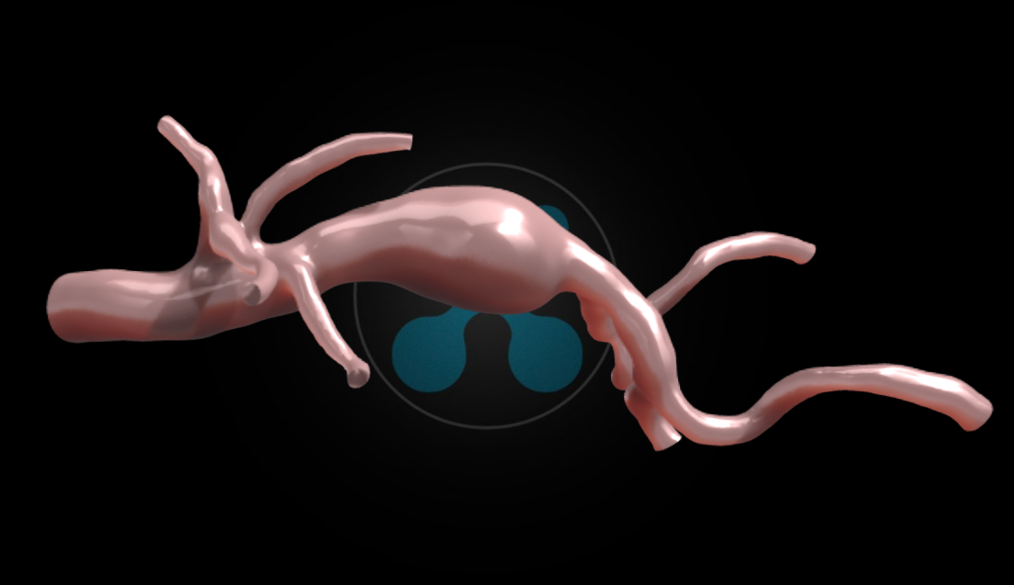

Infrarenal aortic aneurysm #003
| Area | Dimensions |
|---|---|
| Aorta D_i | 28mm |
| L_Neck | 25mm |
| Aneurysm D_i | 55mm |
| C iliac D_i | 14mm |
Infrarenal aortic aneurysm#003 transparent model
Infrarenal aortic aneurysm #004
Infrarenal aortic aneurysm #004
| Area | Dimensions |
|---|---|
| Aorta D_i | 37mm |
| L_Neck | - |
| Aneurysm D_i | 57mm |
| C iliac D_i | 20mm |
ILeft common iliac aneurysm #005
| Area | Dimensions |
|---|---|
| Aorta D_i | 27mm |
| L_Neck | 40mm |
| Aneurysm D_i | 55mm |
| C iliac D_i | 22mm |
Right common iliac aneurysm #006
| Area | Dimensions |
|---|---|
| Aorta D_i | 25mm |
| L_Neck | >50mm |
| Aneurysm D_i | 55mm |
| C iliac D_i | 15mm |
Infrarenal aortic aneurysm #007
| Area | Dimensions |
|---|---|
| Aorta D_i | 35mm |
| L_Neck | 20mm |
| Aneurysm D_i | 80mm |
| C iliac D_i | 20mm |
Infrarenal aortic aneurysm #008
| Area | Dimensions |
|---|---|
| Aorta D_i | 24mm |
| L_Neck | 20mm |
| Aneurysm D_i | 55mm |
| C iliac D_i | 20mm |
Left common iliac aneurysm #009
| Area | Dimensions |
|---|---|
| Aorta D_i | 30mm |
| L_Neck | 15mm |
| Aneurysm D_i | 42mm |
| C iliac D_i | 20mm |
Suprarenal aortic aneurysm #010
| Area | Dimensions |
|---|---|
| Aorta D_i | 32mm |
| L_Neck | 30mm |
| Aneurysm D_i | 16mm |
| C iliac D_i | 13mm |
Aneurysm A. iliaca communis l/r #011
| Area | Dimensions |
|---|---|
| Aorta D_i | 23mm |
| L_Neck | 25mm |
| Aneurysm D_i | 58mm |
| C iliac D_i | - |
Suprarenal aortic aneurysm #012
| Area | Dimensions |
|---|---|
| Aorta D_i | 24mm |
| L_Neck | - |
| Aneurysm D_i | 37mm |
| C iliac D_i | 12mm |
Infrarenal aortic aneurysm #013
| Area | Dimensions |
|---|---|
| Aorta D_i | 27mm |
| L_Neck | >50mm |
| Aneurysm D_i | 52mm |
| C iliac D_i | 17mm |

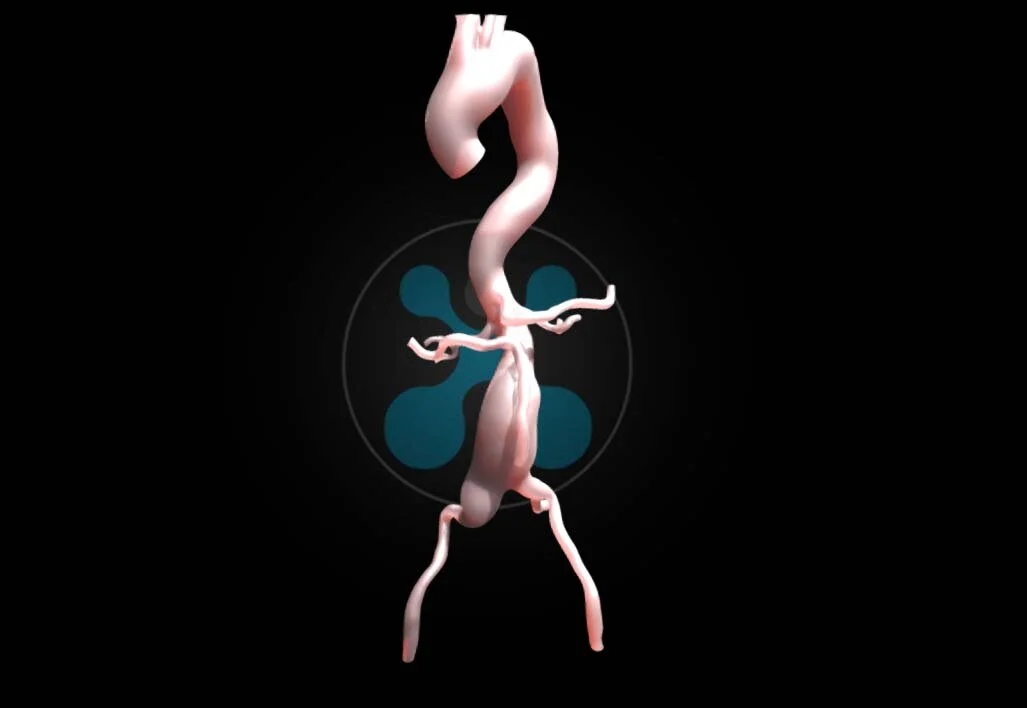

Infrarenal aortic aneurysm #014
| Area | Dimensions |
|---|---|
| Aorta D_i | 26mm |
| L_Neck | 30mm |
| Aneurysm D_i | 55mm |
| C iliac D_i | 20mm |
Left common iliac aneurysm #015
| Area | Dimensions |
|---|---|
| Aorta D_i | 25mm |
| L_Neck | 40mm |
| Aneurysm D_i | 36/52mm |
| C iliac D_i | 16mm |
Thoracoabdominal aortic aneurysm #016
| Area | Dimensions |
|---|---|
| Aorta D_i | 30mm |
| L_Neck | 50mm |
| Aneurysm D_i | >57mm |
| C iliac D_i | 14mm |
Infrarenal aortic aneurysm #017
| Area | Dimensions |
|---|---|
| Aorta D_i | 30mm |
| L_Neck | 36mm |
| Aneurysm D_i | 57/50mm |
| C iliac D_i | 16mm |
Left common iliac artery aneurysm #018
| Area | Dimensions |
|---|---|
| Aorta D_i | 18mm |
| L_Neck | 17mm |
| Aneurysm D_i | 33mm |
| C iliac D_i | 13mm |
Infrarenal aortic aneurysm #019
| Area | Dimensions |
|---|---|
| Aorta D_i | 30mm |
| L_Neck | 30mm |
| Aneurysm D_i | 54mm |
| C iliac D_i | 19mm |
Infrarenal aortic aneurysm #020
| Area | Dimensions |
|---|---|
| Aorta D_i | 26mm |
| L_Neck | 35mm |
| Aneurysm D_i | 65mm |
| C iliac D_i | 17mm |
